1. Displayport To Hdmi Issues

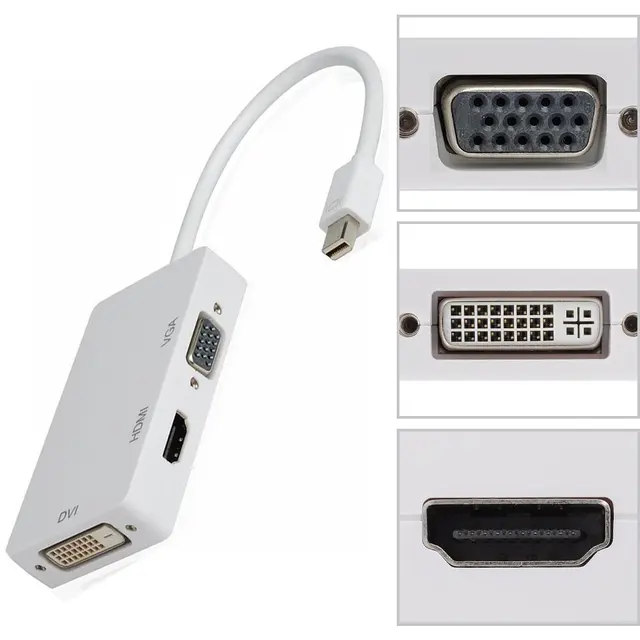

The MDP2VGDVHDW Mini DisplayPort to VGA, DVI or HDMI converter offers a three-in-one solution for connecting an mDP source such as a Thunderbolt™-enabled MacBook Pro® / MacBook Air® to a VGA, DVI, or HDMI Display. Ensuring compatibility with almost any display, television or projector, this compact and lightweight adapter offers the ideal plug-and-play solution for travel, or BYOD (Bring Your Own Device) applications around the office. You can walk into any boardroom and be ready to connect, even if you don't know what connection ports are available. The MDP2VGDVHDW maximizes the audio/video connectivity of your MacBook® by offering three different output ports, in a single compact adapter. The three-in-one converter is compatible with Intel® Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200/1080p you can convert a Mini DisplayPort video source to VGA, HDMI, or DVI without sacrificing video quality.

Best Griffin Technology GC17096 Mini DisplayPort to HDMI or DVI Video Display Converter (Discontinued by Manufacturer) Cheap. And Griffin Technology GC17096 Mini DisplayPort to HDMI or DVI Video Display Converter (Discontinued by Manufacturer) Prices in USA. Apparently, millions of Mini DisplayPort to HDMI Cables are being recalled after. (Mini DisplayPort to HDMI and DVI); iWires Mini DisplayPort to HDMI Adapter.

The Mini DisplayPort converter requires no power adapter and maximizes portability by easily travelling in your laptop bag with a small footprint and lightweight design. The MDP2VGDVHDW features a sleek white design that looks great next to your MacBook® Pro or MacBook Air®, and is backed by a 2-year StarTech.com warranty and free lifetime technical support. Digital Visual Interface (DVI) is a video display interface that can contain different types of signaling, based on the application.

Displayport To Hdmi Issues

DVI cables and ports are created using different connector types to identify what application they are intended to be used in. The connector types are identified by the number of pins on the DVI connector. DVI comes in the following five different connector types:.

Single and Dual link DVI indicate the maximum resolution capabilities of the video source or video destination. The maximum resolutions are Single Link (1920 x 1080 @ 60Hz) and Dual Link (2560 x 1600 @ 60Hz).

Note: The maximum resolution of your video source and video destination are ultimately determined by the technical specifications of the devices. The connector type is not a definitive indicator of the maximum resolution. DVI-A carries only analog (for example, VGA) with no digital component. DVI-D carries only digital video (for example, HDMI) with no analog component.

DVI-I combines DVI-A and DVI-D connections to include both analog and digital components. A DVI-I port may be on either your video source or display, but whether or not a display carries either or both analog and digital sources depends on the technical specifications of your device. When you convert video from a source that uses DisplayPort or Mini DisplayPort to DVI or HDMI (for example, a computer to a monitor), you will need to consider the difference between passive and active adapters. If the source supports dual-mode DisplayPort (also known as DP), then you can use a passive adapter because the source can perform the conversion. If the source does not support DP, then you need to use an active converter, which includes additional chips to perform the conversion.

Thunderbolt ports support DP natively. To run multiple monitors from the same computer, refer to the Active Adapters section below. Passive Adapters Passive adapters are less expensive since they do not need to include additional chips. A quick way to check whether you can use a passive adapter is to see if the DisplayPort or Mini DisplayPort source has the DP symbol above it. The symbol is a D with a P inside of it, with two + signs to the left, one on top of the other.

Active Adapters Active adapters use additional chips to make the conversion inside the adapter, regardless of whether the source supports DP. This means that active adapters are more expensive than passive adapters. If you want to use multiple monitors with the same computer, you should use an active adapter because some video cards cannot run the maximum number of monitors while using DP. This is especially true if the computer has more than one DisplayPort or Mini DisplayPort connection. Check with your video card manufacturer to confirm which type of adapter you need for the setup that you would like to run. Note: You should use passive adapters with StarTech.com MST hubs, except when you are converting from DisplayPort to VGA, since that type of conversion requires active adapters.

For more information on using adapters with StarTech.com MST hubs, refer to the following FAQ:. Surface Dock If you experience issues when you connect passive video signal adapters to the Surface Dock, Microsoft recommends that you use active video signal converters instead. StarTech.com offers an active video signal converter for DVI monitors and for HDMI monitors. Note: This issue does not apply to the Surface Pro 3 Docking Station. When you troubleshoot issues with a video adapter, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue:. Video cables.

Video adapter. Video source (such as a DVD player or computer). Video destination (such as a monitor or projector) To test your setup components, try the following:.

Use the cable, video adapter, video source, and video destination in another setup to see if the problem is with the components or the setup. Use a different cable, video adapter, video source, and video destination in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup.

When you test your cables, it is recommended that you do the following:. Test each cable individually. Use short cables when you are testing.

When you test the video source and video destination, it is recommended that you do the following:. Remove the video adapter from your setup and test to make sure that the video source and video destination work together without the video adapter. Test to make sure that the video source and video destination work together at the resolution that you want to use.

Note: In order for your setup to work properly, the video source, adapter, and destination all need to support the resolution that you are using. This is likely a High-bandwidth Digital Content Protection (HDCP) issue. If you are converting a video signal from a device that can play copyright-protected content, HDCP will block the conversion to an analog signal (for example, VGA) or to any video capture cards. You will likely run into this issue when you use devices like Blu-ray players, DVD players, and certain gaming consoles. For more information on HDCP and gaming consoles, refer to the following FAQ:. Some video cards also output an HDCP signal full time. In this case there should be an option for your video card to disable this feature. You might need to contact the manufacturer of your video card for more information.

Adhering to HDCP is required for converting all digital signals to analog signals or to video capture cards. Unfortunately, there is nothing you can do in these situations other than convert to a digital display. California Proposition 65 Warning Warning: Cancer and reproductive harm — Safety Measures. If product has an exposed circuit board, do not touch the product under power.

If Class 1 Laser Product. Laser radiation is present when the system is open. Wiring terminations should not be made with the product and/or electric lines under power. Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines. Cables (including power and charging cables) should be placed and routed to avoid creating electric, tripping or safety hazards. I used this at a conference out of state with my new Microsoft Surface Pro 4 for a presentation to my leadership team (with HDMI). The fact that I didn`t have to worry about whether I needed different adapters was really nice.

The video clarity and sound quality were excellent, and it is so small, it is easy to take with you in any capacity. It is backed by a two year warranty, which gave me peace of mind because even though I received this product for free to review, I intend to use it again and again. Hi, Thanks for your review. We are sorry you have had problems with this adapter. We take quality issues very seriously and would like to know more about how this adapter had broken down for you.

Historically, we have had excellent feedback regarding this quality of this product, as well as other similar versions. Regarding Surface Pro 4 docking station compatibility. This adapter used both an active chip (for VGA) and a passive chip (for DVI and HDMI). If you are adapter from the Surface Dock to our MDP2VGDVHD and using a VGA monitor, you should have no problems.

However connecting the MDP2VGDVHD to the Surface Dock to use with a DVI/HDMI monitor, it will not work. An adapter with an active chip would be required. We have more details on this topic here: You can also speak to our Technical Advisors by clicking Support at the top of our website. Hi, Thanks for your review. We are sorry you have had problems with this adapter. We take quality issues very seriously and would like to know more about how this adapter had broken down for you.

Historically, we have had excellent feedback regarding this quality of this product, as well as other similar versions. Regarding Surface Pro 4 docking station compatibility. This adapter used both an active chip (for VGA) and a passive chip (for DVI and HDMI). If you are adapter from the Surface Dock to our MDP2VGDVHD and using a VGA monitor, you should have no problems. However connecting the MDP2VGDVHD to the Surface Dock to use with a DVI/HDMI monitor, it will not work. An adapter with an active chip would be required. We have more details on this topic here: You can also speak to our Technical Advisors by clicking Support at the top of our website.
